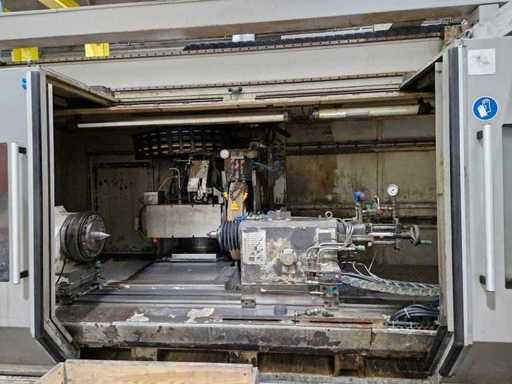

KARSTENS - HG 320 - CNC cylindrical grinding machine - 2004
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KARSTENS
- Type
- HG 320
- Year of build
- 2004
- CNC
- Yes
- Machine weight
- 14500kg
- Dimension l
- 5000mm
- Dimension w
- 2400mm
- Terms of delivery
- Loaded on truck
Description

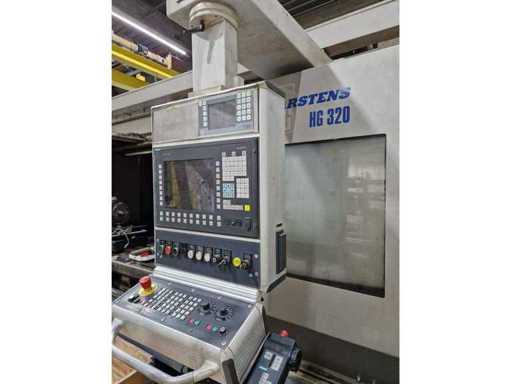

CNC Control: Siemens Sinumerik
Machine length: 5,000 mm
Machine width: approx. 2,400 mm
Weight: approx. 14,500 kg
Tip height: 360 mm
Maximum grinding diameter: 715 mm
Maximum grinding length: 2,000 mm
X-axis travel: 500 mm
X-axis speed: 0.01 to 15,000 mm/min
X-axis measurement resolution: 0.0001 mm
Z-axis travel: 2,700 mm
Z-axis speed: 0.01 to 15,000 mm/min
Z-axis measurement resolution: 0.0001 mm
B-axis travel: 280°
B-axis speed: 3,600°/min
B-axis resolution: 0.00005°
Orientation of the external grinding spindle: right, from 0° to 30°

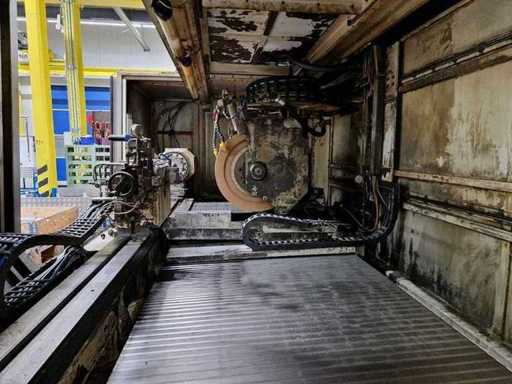

Maximum wheel diameter: 610 mm
Grinding spindle power: 15 kW
Peripheral speed: 50 m/s
Workpiece Spindle Speed Range: 1 to 450 RPM
Workpiece spindle power: 4.2 kW
Torque: 90 Nm
Inner cone: MK 6
Tip diameter: 92 mm
Maximum cantilevered workpiece weight: 500 kg
Maximum workpiece weight between spikes: 650 kg
Taper of the tailstock sheath: MK 5
Tailstock tip diameter: 63 mm
Sleeve travel: 75 mm
Fine adjustment: ± 0.080 mm
Additional details
Les dimensions et poids indiqués pour chaque lot sont fournis à titre indicatif et correspondent à la configuration actuelle (machine assemblée).
Les opérations de démontage, de manutention ou d’emballage peuvent modifier ces données et avoir un impact sur les conditions de transport.
Avant toute organisation de transport, les acheteurs sont invités à vérifier les caractéristiques réelles de leurs lots directement auprès du vendeur ou de la société en charge du démontage.
