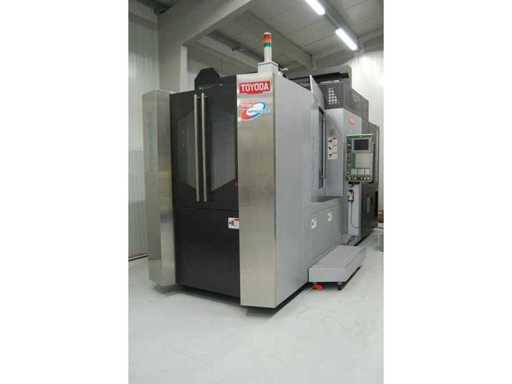

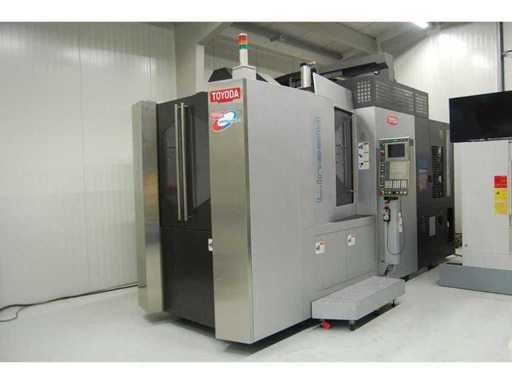

TOYODA - 2004 - LINEAM III - Horizontaal CNC-bewerkingscentrum

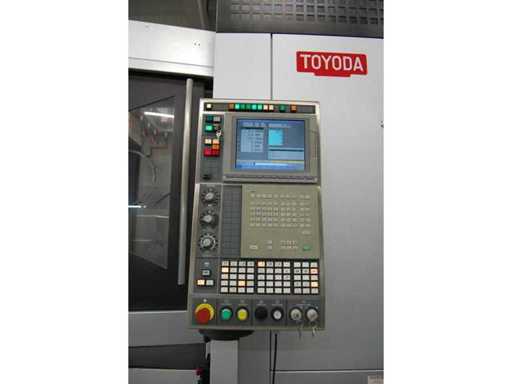

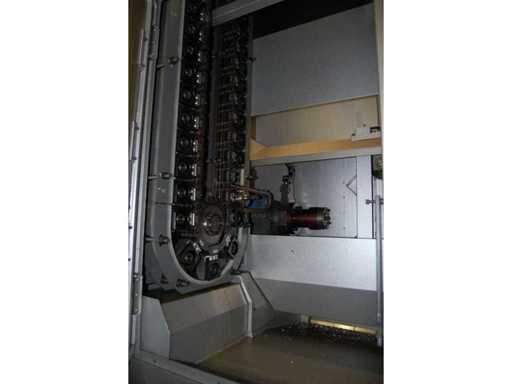

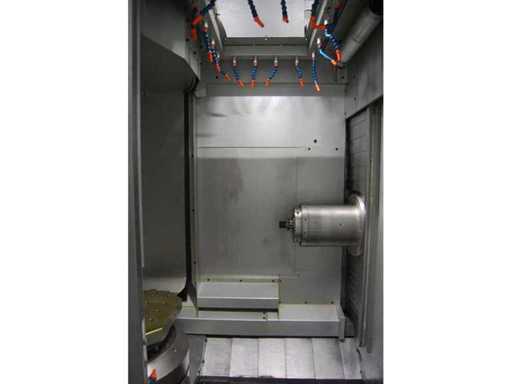

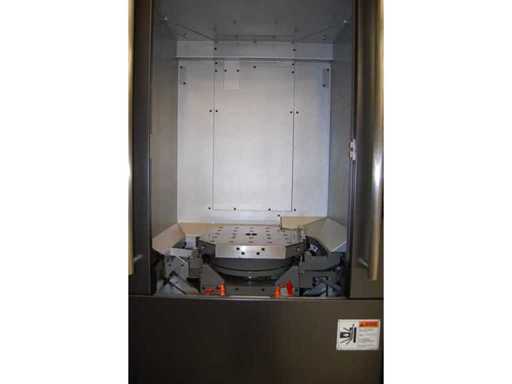

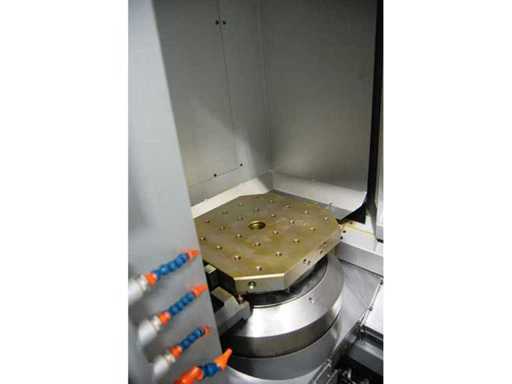

CNC HORIZONTAL MACHINING CENTER Inv. No. 12.178MM Make TOYODA Model LINEAM III Control MELDAS M650 Year 2004 TABLE Pallet size 450 x 450 mm Max. load on pallet 400 kg Table indexing increment 0.001 degrees STROKE X-Axis stroke 630 mm Y-Axis stroke 630 mm Z-Axis stroke 700 mm Distance from spindle center to top of pallet 50 – 680 mm Distance spindle nose /center rotary index table 50 – 680 mm FEED RATE Rapid feed rate X,Y 120 m/min Rapid feed rate Z 60 m/min Rapid feed rate B 120 m/min Cutting feed rate X,Y,Z 0,1 – 60 m/min SPINDLE RPM spindle 300 – 20.000 min-1 Spindle taper HSK-A63 Coolant Through spindle ATC Tool holder Special HSK-A63 2 Face contact tool Tool magazine storage 40 pcs Tool change time 2,5 sec. DRIVE MOTOR Spindle drive motor Ac 45/30 kW MACHINE WEIGHT & POWER REQUIREMENTS Machine weight 15.000 kg Power requirement 96 kVA ACCESSORIES: Spindle linear motor cooling unit Spindle orientation Spindle air blow Splash guard – House type w ith rotary door Pallet changer – Turn type equipped with 2 pallets
