STROMAB - 2006 - CT800
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- STROMAB
- Type
- CT800
- Year of build
- 2006

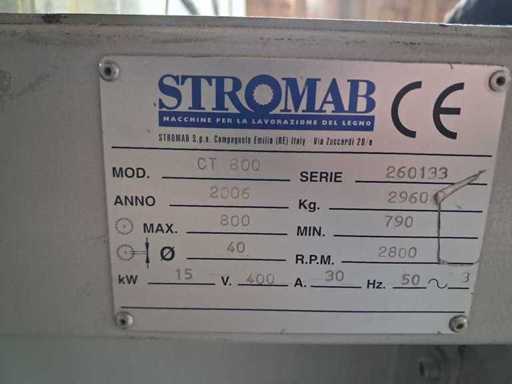

- Serial number
- 260133
- Saw blade Ø
- 800mm
- Electric connection
- 380V
- Machine weight
- 2900kg
Description

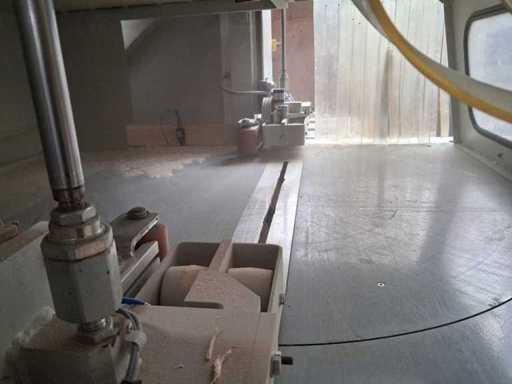

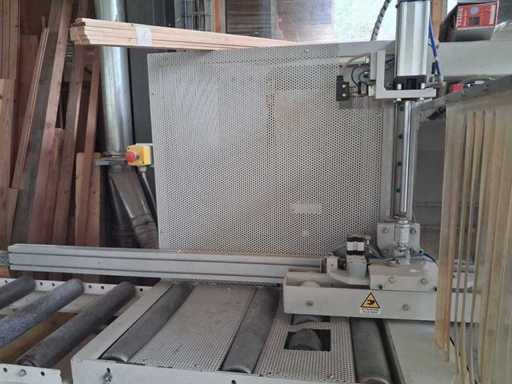

CUTTING CENTER FOR STRUCTURAL BEAMS "CT800"
CV 20, blade diameter 800 mm.
Total weight without tables kg.2900
Complete with: Carbide blade diameter 800 mm., F40, Z=48, S=7
N°5 axes controlled by the controller:
- Worktable rotation (0°-340°) (Worktable rotation speed 9 sec. every 180°)
- Blade tilt from 90° to 45° (Blade tilt speed 20 sec. from 90° to 45°)
- Raising the blade (speed 15 sec. every 10 cm.)
- Beam drive and measurement (speed at 17 mt/min)
- Motorized movement of the table in relation to the rear guide (total movement of the table 600 mm.)
Sensor for reading the beginning of the beam

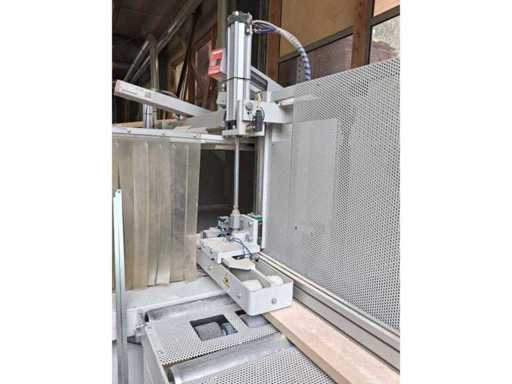

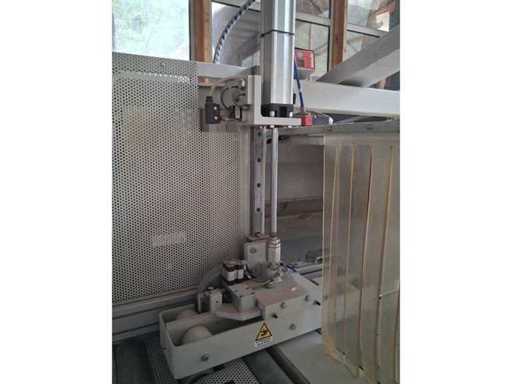

Pair of vertical cylinders for cutting optimization management
Cutting Accuracy:
+/- 2 mm. on a beam of mt.10 (straight beam)
+/- 0.2° on the rotation angle of the table in work
+/- 0.2° on the angle of inclination of the blade

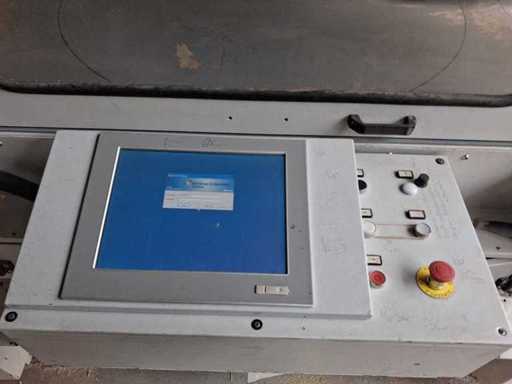

Management and Control System:

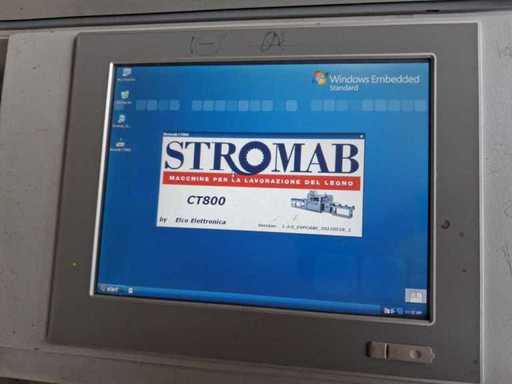

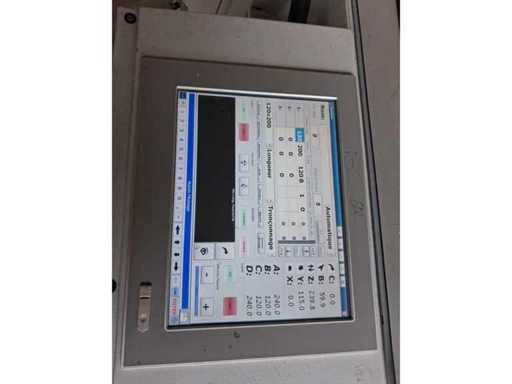

Industrial Touch-Screen PC
Working system
Windows
USB-Ethernet Door
Cutting Capacity:
Minimum cutting section: mm. 120 x 45
90° with a single cut: mm.280x290 / 250x390 / 200x450
90° with cuts in sequence mm.280x770 / 250x840
At 45° with a single cut: mm.200x210
45° with sequence cuts: mm.200x760
Remarks
Fully overhauled machine
Works
Additional details
The dimensions and weights indicated for each batch are given as an indication in the current configuration of the (assembled) equipment. Disassembly, handling or packaging can change these values and influence the transport conditions.
Before booking any transport, buyers are asked to check the actual specifications of the lots directly with the seller or the company in charge of the dismantling, in order to arrange a suitable collection.
