SORALUCE - SP 5000 - Fixed bed CNC milling machine - 2001
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- SORALUCE
- Type
- SP 5000
- Year of build
- 2001
- Serial number
- 8039
- Travel x-axis
- 3500mm
- Travel y-axis
- 1200mm
- Travel z-axis
- 2000mm
- Speed till n=
- 9000rpm
- T-slot fixture table size L
- 5000mm
- T-slot fixture table size W
- 1100mm
- CNC control, brand, type
- HEIDENHAIN
- Electric connection
- 380V
- Machine weight
- 24000kg
- Dimension l
- 10000mm
- Dimension w
- 4500mm
- Dimension h
- 4500mm
- Terms of delivery
- Loaded on truck
Description
Serial Number: Reference 8039

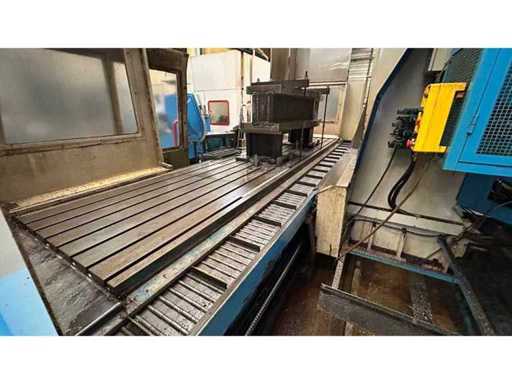

Table: 5,000 x 1,100 mm
Number of tools: 30
4th axis: Platform Ø 500 mm
Strokes (X/Y/Z): 3,500 / 1,200 / 2,000 mm
Max. spindle speed: 9,000 rpm
Fast feed axes: 15,000 mm/min

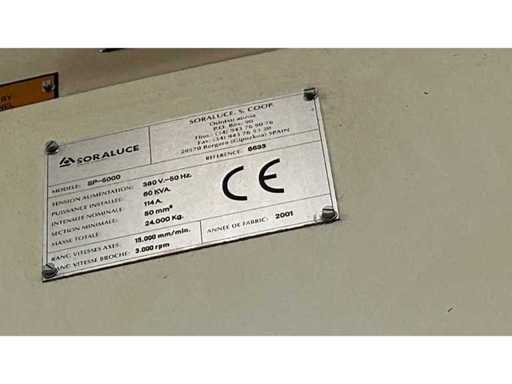

Installed power: 66 kVA
Supply voltage: 380 V – 50 Hz
Total weight: 24,000 kg

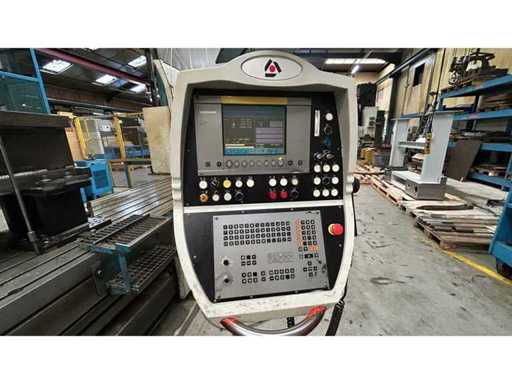

CNC Control: HEIDENHAIN
Country of Manufacture: Spain
Remarks
The additional cost indicated for this lot is only for crane and loading costs.
The organization of dismantling and loading is entirely at the expense of the buyer.
Additional details
At the request of interested parties, online auction of metalworking machinery.
The dimensions and weights shown for each batch are provided as a guide and correspond to the current (assembled) condition of the equipment.
Disassembly, handling or packaging can change these values and impact transport conditions.
Prior to any transport booking, buyers are asked to check the actual specifications of the lots directly with the seller or the dismantling company to ensure proper organisation.
Pick-ups will be made after full payment of the invoice and only by appointment.
