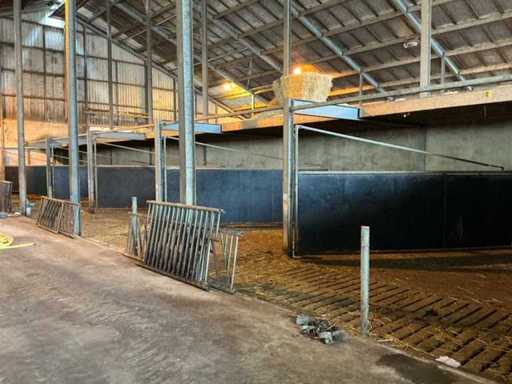

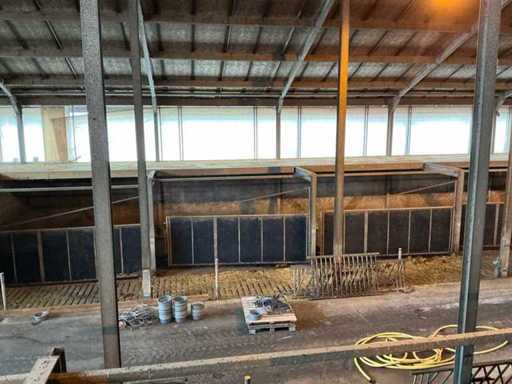

Party stable equipment – 6 gates with supporting structure and wooden floor

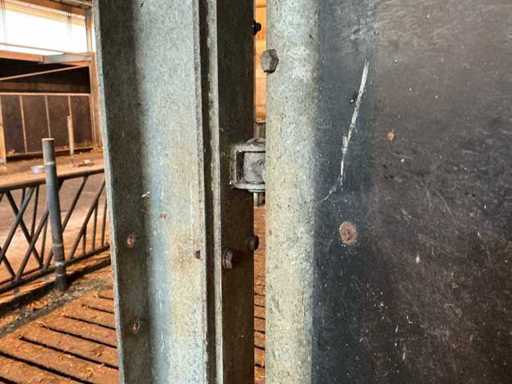

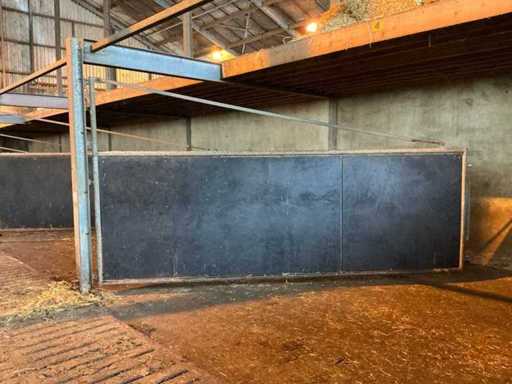

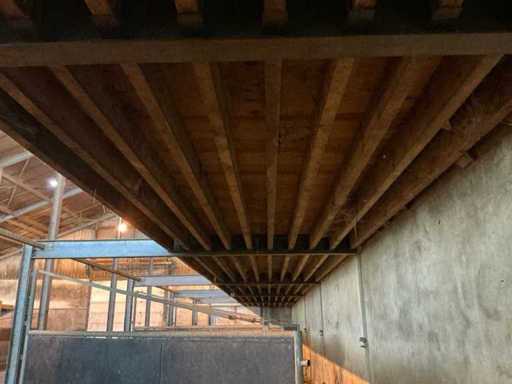

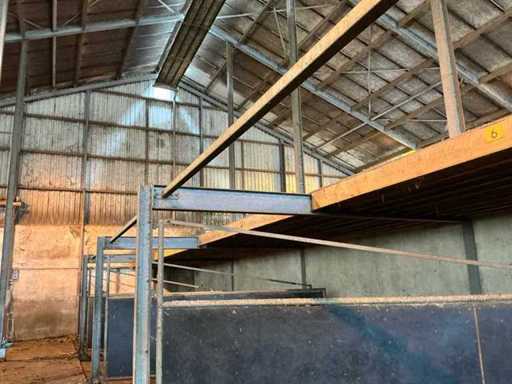

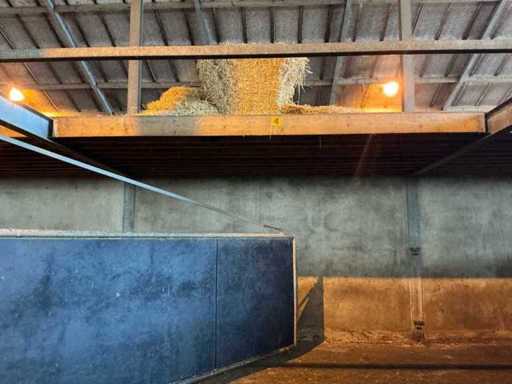

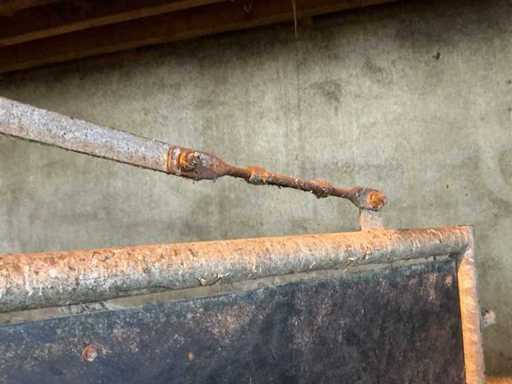

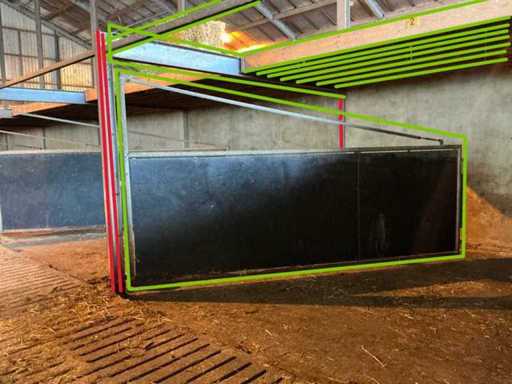

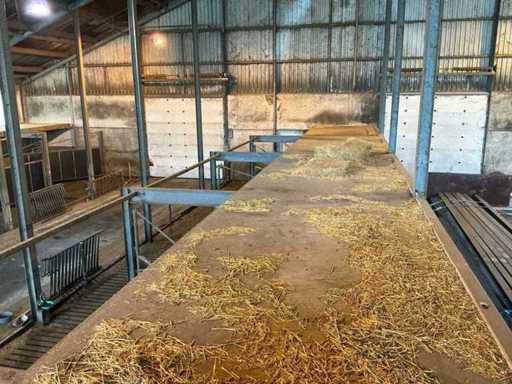

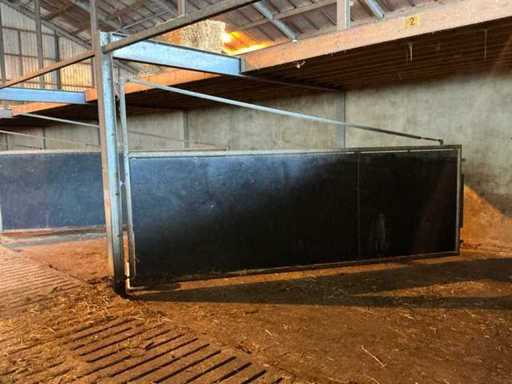

Consists of: complete stable equipment consisting of 6 steel swing gates, associated steel construction (main supporting structure) and wooden floor/beam layer, construction made of heavy agricultural quality, suitable for reconstruction or reuse, gates 6 pieces, steel swing gates, dimensions per gate: width: 4,800 mm, height: 1,650 mm, height tube construction: 2,500 mm, hinges: 4 per gate, hinge pin: Ø approx. 100 mm, length: 2,500 mm, Fixed with 10 bolts per hinge arrangement, Welded and galvanized steel construction, Heavy industrial/stable application, Steel construction (main load-bearing structure) Truss width: 4,885 mm, Truss profile: 135 mm wide, 270 mm high, Box sections: 70 x 70 mm, Length: 4,900 mm, H-beams: 5 pieces, Uprights: 5 pieces (Note: uprights are anchored in concrete and are not part of the sale, Construction executed with welded and bolted connections, wooden floor/beam layer, wooden beams: 60 pieces, dimensions: 220 x 70 mm, length: 4,900 mm, underlayment plates: 24 pieces, additional 4 plates, used as load-bearing floor construction, steel gates: ± 3,000 – 3,600 kg, steel construction (beams, tubes, H-beams): ± 2,000 – 2,500 kg, wooden beams and plates: ± 3,000 – 3,500 kg, total estimated weight: approx. 8,000 – 9,500 kg, total length of installation: approx. 29 meters, See photo 2, parts marked in red, are not part of the purchase, see lot 208 for the same setup.
